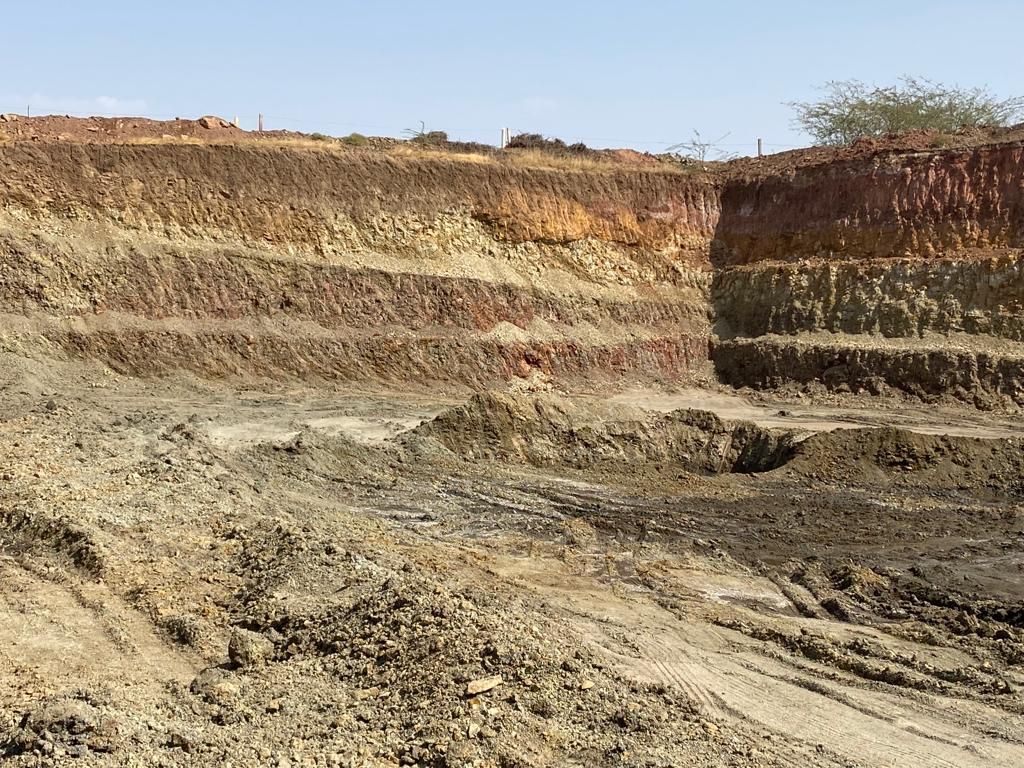

Our own mine
The clay in every bag comes from our own reserves in Kutch.
We mine it.
We make it.
Our bentonite comes out of our own mine and is processed at our plant in Bhuj, Kutch. Our PHPA polymers, PAC cellulose and drilling foam are made at Domjur, Howrah. Trusted since 1994.
From our mine in Kutch to your site.

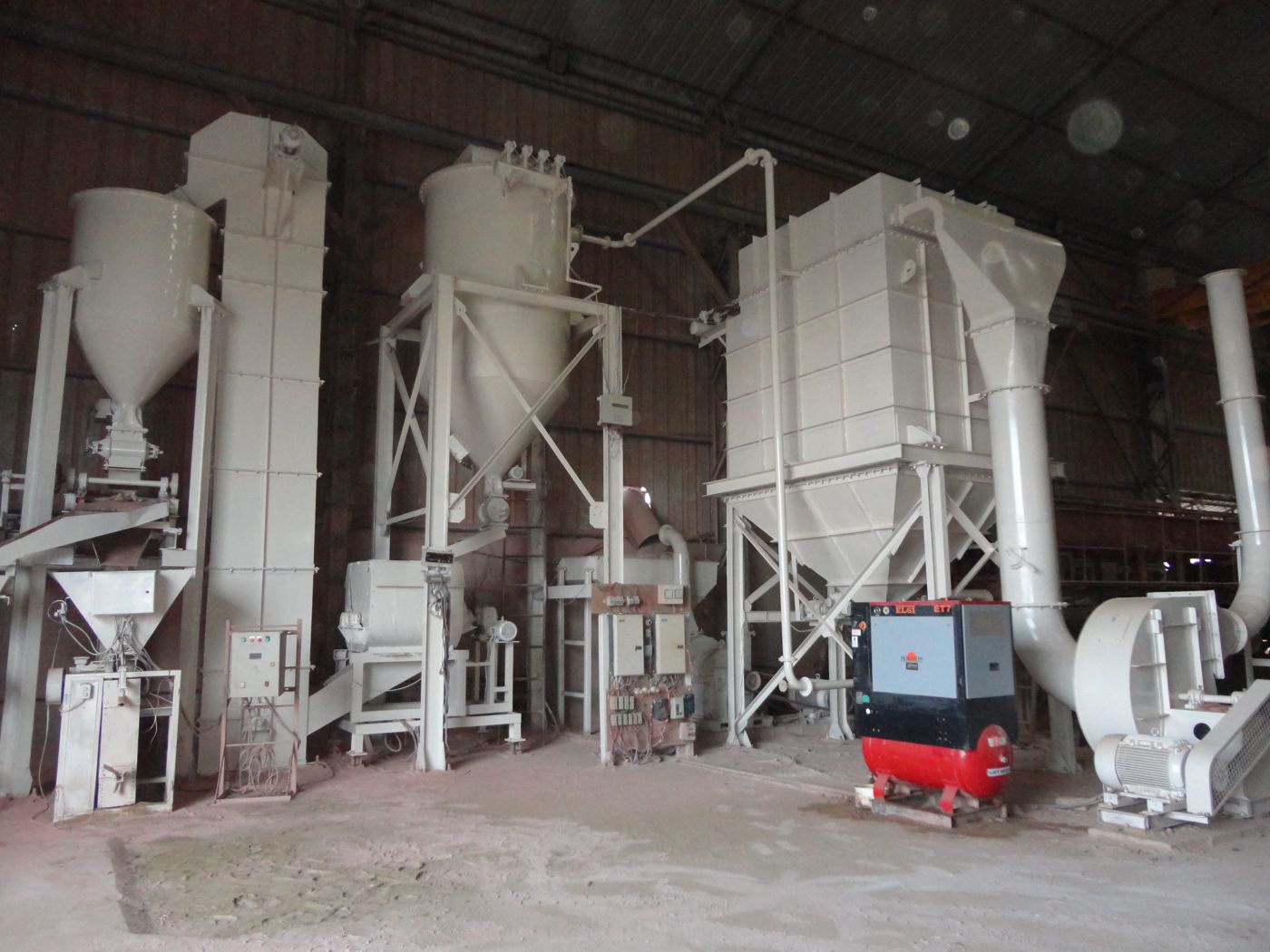

Processed at Bhuj
Mined clay is milled and activated on our own line at Bhuj, Kutch — 100 tonnes a day.
Quality control
Every batch is tested against its data sheet in our in-house laboratory before it is packed.

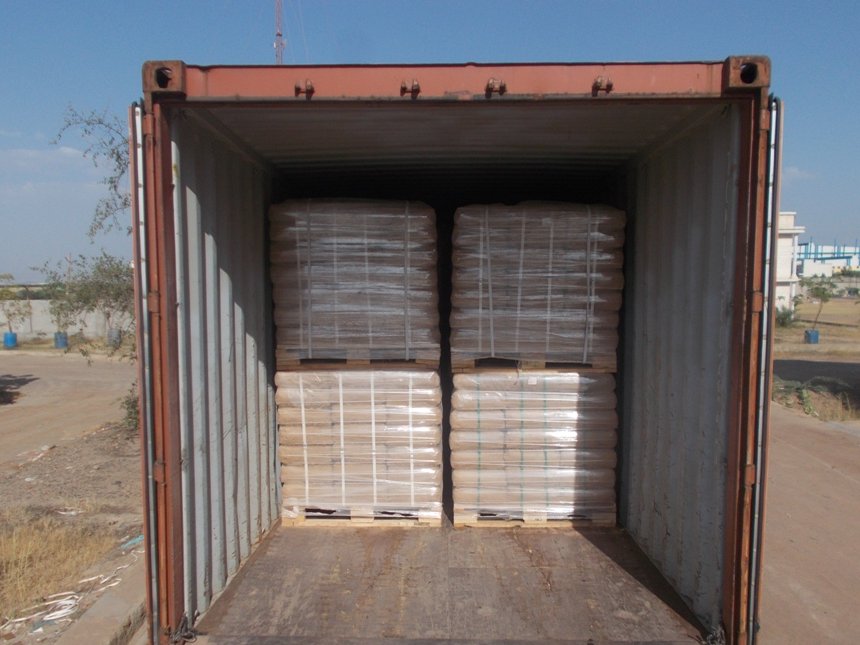

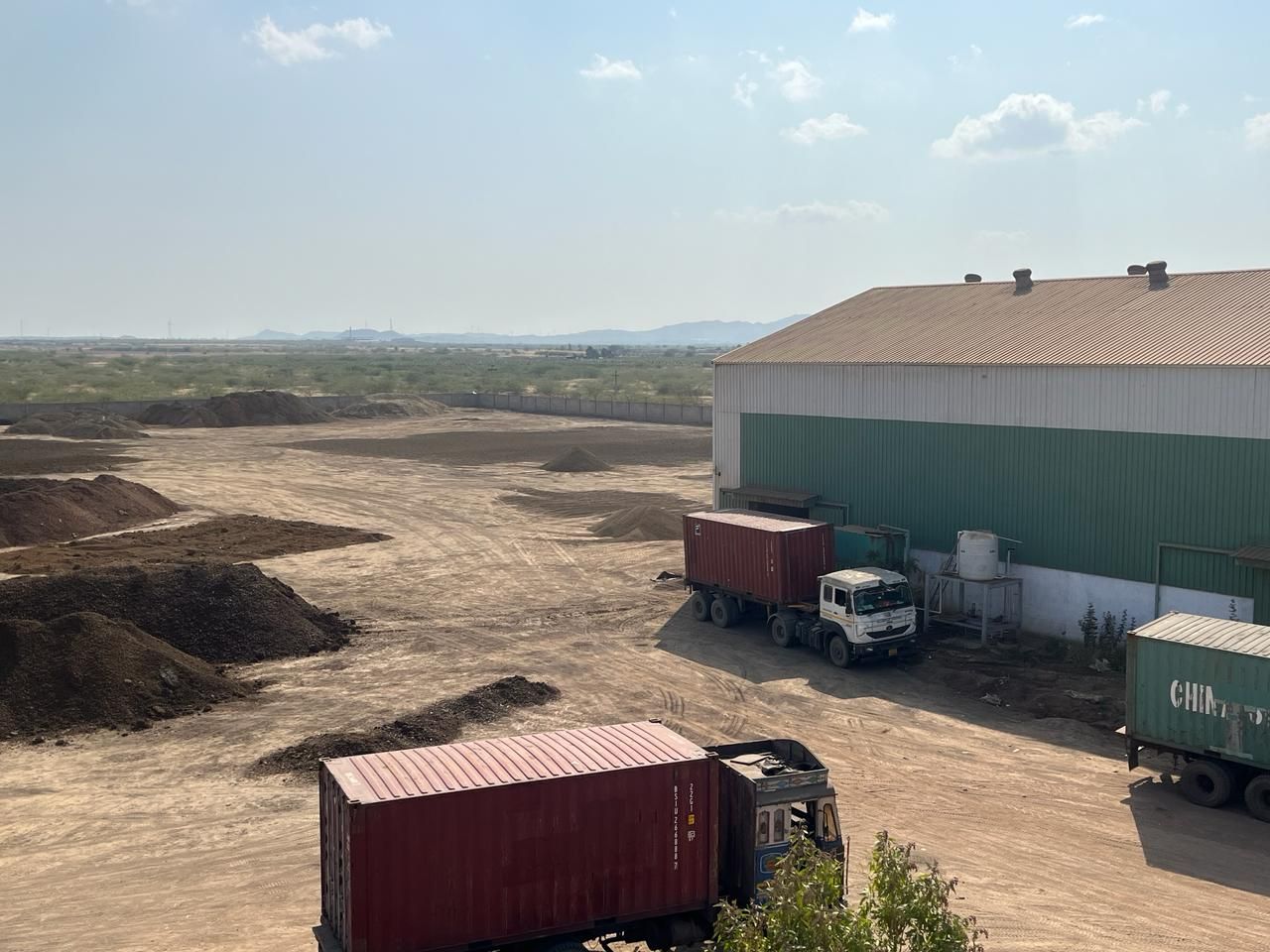

Dispatched to your site
25 kg bags, or jumbo bags of 1,300 kg. We ship through Mundra and Kandla.
Problems we solve

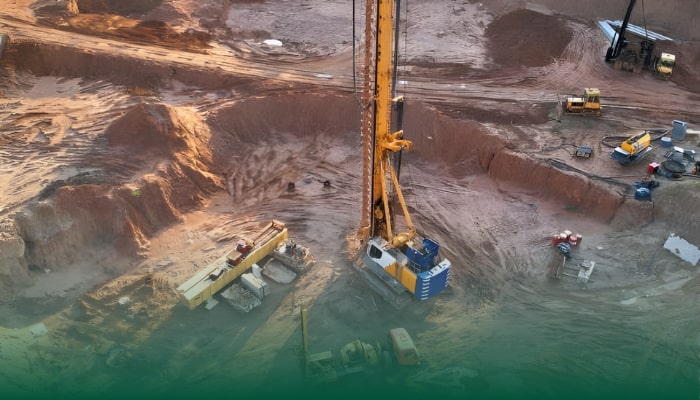

Piling & D-walls
The bore wall caves in before you pour
Holds the pile wall so collapse is minimal. If the ground changes, add our polymer rather than switch bentonite.
Piling & HDD
Mud-pump liners wear out too fast
Low sand content (wet residue under 2%) spares the pump liners.
HDD
The rig stands idle while the mud ages
Pileman® Trenchless is ready to use 15–20 minutes after mixing.
HDD
Pump pressure climbs and cuttings stay in the bore
Gel strength and yield point are set to carry cuttings out at low pump pressure, which helps prevent frac-outs.
Tunnelling & HDD
Sticky clay balls the cutting head, and more bentonite won’t fix it
Reactive clay needs an inhibitor: Easy-Bore™ with Foam-Drill™ keeps sticky clay off the cutting head.

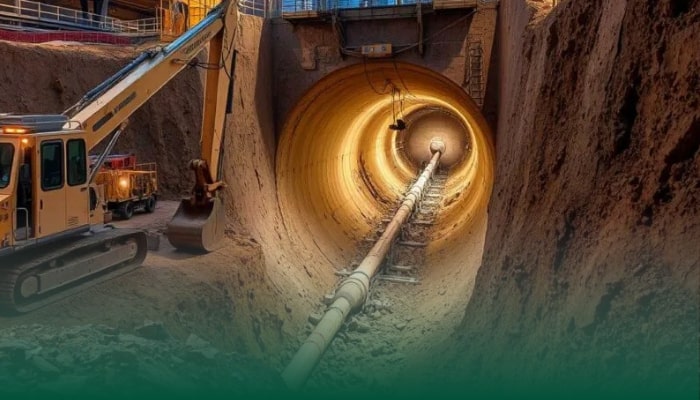

Microtunnelling
Jacking force keeps climbing along the drive
Pileman® with Easy-Bore™ as side support cuts wall friction, so tunnel pressure comes down.
Tunnelling & HDD
Brackish mix water, or seawater getting into the tunnel
Pileman® BH mixes in brackish water up to 5,000 ppm with soda ash; hydrated in fresh water, it holds up to 30% seawater dilution.
Grouting
Grout bleeds before it sets
VodaSeal™-Grout at 3% of cement weight reduces bleed, tested to ASTM C940.
Cut-off walls
Water seeps through the cut-off wall
VodaSeal™-SCB swells into a gel and adds a hydraulic barrier to the soil-cement-bentonite mix.
Well sealing
Groundwater tracks down the borehole or piezometer
Smec-Tight™ pellets swell into a low-permeability seal (10⁻⁸ cm/s), non-toxic and safe in aquifers.

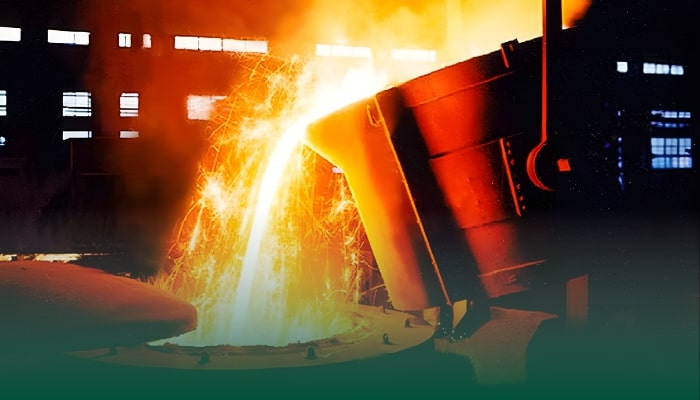

Foundry
Scabs and blow holes in the castings
Varan® builds wet tensile strength (0.22 N/cm² min at 5% addition) against scabs, and cuts dead clay, so fewer blow holes.

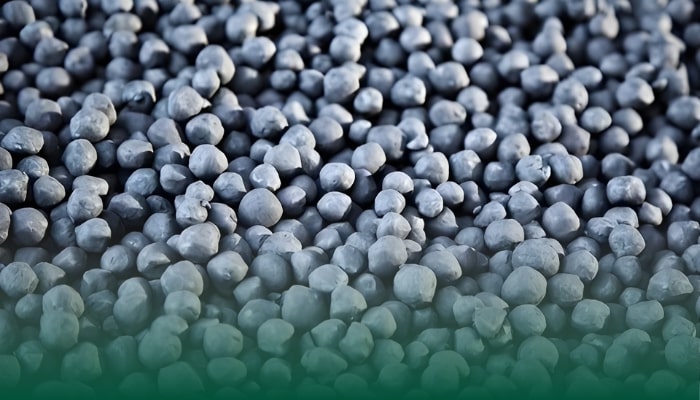

Iron ore pelletizing
Green pellets crack in handling
Pellet-Maker™ improves the drop number at 1.2% addition.
Latest from Amrfeo
Our recent posts on LinkedIn
LinkedIn post
Bentonite in HDD isn't just drilling mud, it performs 5 jobs simultaneously- read to know more.
LinkedIn post
Pileman® has been trusted and proven in the market since 2006.
LinkedIn post
The bentonite you save on procurement can cost you in the blast furnace.
LinkedIn post
If you are facing frac-outs on site, the fluid design is probably why.
LinkedIn post
On a project where conventional grade demands 100 tonnes, Pileman® Trenchless completes the identical bore with 60-70 tonnes.
LinkedIn post
$2,000 to $5,000. Per day. That's what a rig costs when it's standing idle waiting for slurry to reach specification.
LinkedIn post
It's a common assumption on site — if the bore is unstable, add more bentonite. If returns are poor, increase the concentration. If in doubt, put more in. It seems logical. It is usually wrong.
LinkedIn post
Bentonite used in grouting is not an inert filler. It is a rheological modifier, and its mineralogical composition, treatment process, and compatibility with cementitious systems determine whether a grout mix performs to specification
LinkedIn post
Not all bentonite performs the same - and Montmorillonite (Mont) content is one of the biggest reasons why.
LinkedIn post
The top 5 most common mistakes in Piling fluid management.
LinkedIn post
Losing drilling fluid to the formation? Here's the additive that stops it.
LinkedIn post
Green sand casting remains one of the commonly used moulding processes in the foundry industry due to its efficiency, flexibility, and economic advantages.
LinkedIn post
💡 Can your current sealing method guarantee long-term groundwater protection?
Made by us. Checked by others.
Since 1994
We make bentonite at Bhuj and polymers at Domjur.
ISO 9001:2015
All our plants are quality management system certified.
One Star Export House
Recognised by the Government of India. We ship through Mundra and Kandla.
Own mine, Kutch
The clay in every bag comes from our own reserves in Kutch.
