Bentonite drilling mud for horizontal directional drilling

What is your mix water?

Pileman® Trenchless

45 kg per m³ of fresh water, ready in 15 to 20 minutes. Suits almost all soil types, including sand and rock.

Learn more →

Pileman® Trenchless

Add soda ash to the water first, then Pileman® Trenchless at 45 kg per m³.

Learn more →

Pileman® BH

Mixes straight into brackish water up to 5,000 ppm, with soda ash pre-mixed into the water. Drills in up to 16,000 ppm conditions when hydrated in fresh water.

Learn more →

Add your name

Add an email address

Reply within 1 working day · or call, WhatsApp, email · Privacy policy

Sent. We reply within 1 working day.
Not sure, or above 16,000 ppm? Send us your water analysis

What bentonite slurry does in an HDD bore

  1. 1Cuttings
  2. 2Bore
  3. 3Pressure
  4. 4Pumps
  5. 5Bit
Shale shakers separating cuttings from the returning drilling fluid

Carries the cuttings out

The fluid thins as it is pumped and sets to a gel when pumping stops, so the cuttings ride out of the bore instead of settling in it.

A bentonite filter cake holding its shape in a vertical petri dish

Holds the bore

The slurry is designed to deposit a thin, low-permeability filter cake on the bore wall, so little fluid is lost into the ground. API filtrate: 20 ml in 30 minutes at 100 psi.

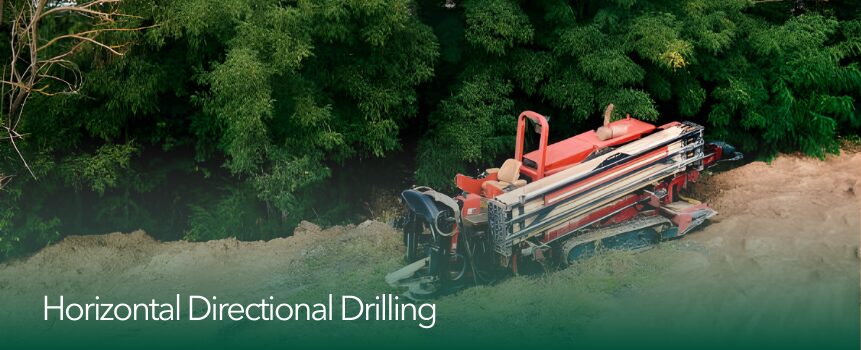

A horizontal directional drilling rig at work on timber mats

Keeps pump pressure down

Pump pressure stays low on longer drives, which helps prevent a frac-out to the surface.

A drilling mud pump

Protects the pump liners

Sand content under 2% means less erosion on the liners of your mud pump.

A worn tricone drilling bit

Cools and lubricates the bit

The slurry carries heat away from the drill bit and eases it through the ground.

Not sure of your water, or above 16,000 ppm?

Send us the water analysis. The technical desk reads it and replies within 1 working day.

Made by us. Checked by others.

Since 1994

A manufacturer, not a trader. Bentonite at Bhuj, polymers at Domjur.

ISO 9001:2015

All our plants are quality management system certified.

Star Export House

Recognised by the Government of India. We ship through Mundra and Kandla.

Own mine, Kutch

The clay in every bag comes from our own reserves in Kutch.

Choose your grade

Fresh water in normal ground takes Pileman® Trenchless. Sand, gravel or rock takes Pileman® SDF. Brackish water up to 16,000 ppm takes Pileman® BH.

Pileman® Trenchless

For fresh water, in almost all soil types

  • 45 kg/m³dose
  • 60″+Marsh viscosity
  • 20 mlAPI filtrate at 100 psi
  • 145 bbl/shtyield
  • 15–20 minto ready

Pileman® Trenchless product page

Pileman® SDF

For fresh water in sand, gravel or rock

  • 50 kg/m³dose, plus 500 g gel
  • 67″Marsh viscosity
  • 19 mlAPI filtrate
  • 140 bbl/shtyield
  • 20 minto ready

Pileman® SDF product page

Pileman® BH

For brackish water up to 16,000 ppm

  • 50 kg/m³dose
  • 50″Marsh, in 5,000 ppm water
  • 23 mlAPI filtrate
  • 9 lb/100 ft²10 s gel strength
  • 1.03slurry specific gravity

Pileman® BH product page

Back to one at a time
Every grade on this page, side by side
Pileman® TrenchlessPileman® SDFPileman® BH
UseFor fresh water, in almost all soil typesFor fresh water in sand, gravel or rockFor brackish water up to 16,000 ppm
Dose45 kg/m³50 kg/m³dose, plus 500 g gel50 kg/m³
Marsh viscosity60″+67″50″Marsh, in 5,000 ppm water
API filtrate20 mlAPI filtrate at 100 psi19 ml23 ml
Yield145 bbl/sht140 bbl/sht
Time to ready15–20 min20 min
10 s gel strength9 lb/100 ft²
Specific gravity1.03slurry specific gravity
A bentonite slurry plant with silos on a construction site

How much bentonite per m³ of slurry

  1. Check the water. If the water TDS is above 500 ppm, add soda ash (light) to the make-up water. Brackish water up to 16,000 ppm takes Pileman® BH.
  2. Mix 45 kg per 1,000 litres. That is the Pileman® Trenchless dose. The dose is not the same for all three: Pileman® SDF and Pileman® BH are both 50 kg per 1,000 litres, and Pileman® SDF takes a further 500 g of its polymer gel. Pileman® Trenchless is naturally low in fluid loss, so very little slurry soaks into the ground: less is lost, and less has to be replaced.
  3. Wait 15–20 minutes, then check it. Pileman® Trenchless gives a Marsh viscosity above 60″; run it through your own funnel. Pileman® SDF is mixed 15 minutes, then 5 minutes more once the gel goes in.

Frequently Asked Questions

Which bentonite is used for horizontal directional drilling?

Pileman® Trenchless, a bentonite with the polymer already in the bag, for HDD in fresh water. Where the ground is sand, gravel or rock, use Pileman® SDF: Pileman® mixed with its polymer gel on site. For brackish water up to 16,000 ppm, Pileman® BH.

How much Pileman® Trenchless goes into one m³ of slurry?

45 kg in 1,000 litres of fresh water. The slurry is ready to use 15 to 20 minutes after mixing.

Sodium or calcium bentonite: which do I need?

Sodium bentonite. Calcium bentonite swells far less, so its slurry stays thin: it can't carry or hold up the cuttings, and it leaves a thick filter cake. Pileman® Trenchless and the Pileman® in Pileman® SDF are sodium bentonite: they swell into a gel that holds the bore and lays a thin filter cake, so little water is lost into the ground.

Bentonite with polymer or plain bentonite for HDD: which do I need?

Bentonite with polymer. Pileman® Trenchless has the polymer already in the bag, for HDD in fresh water: the polymer raises the yield and keeps pump pressure under control while large volumes of slurry are pumped on big-diameter bores, and the slurry carries the cuttings out.

What if my site water is brackish?

Pileman® BH is specially designed for drilling where the water is saline. With soda ash pre-mixed into the water, mix it straight into brackish water up to 5,000 ppm. Drills in up to 16,000 ppm conditions when hydrated in fresh water. Above that, send us a water analysis. Hard water: pre-mix soda ash (light) into the water, then use Pileman® Trenchless.

Who supplies Pileman® Trenchless for HDD?

Amrfeo Private Limited, a manufacturer since 1994, makes and exports Pileman® Trenchless for HDD, supplying buyers across the Gulf, Europe and Asia. The bentonite is mined and processed at our plant at Bhuj, Kutch, Gujarat, under ISO 9001:2015.

Do Amrfeo’s HDD grades meet API 13A and OCMA DFCP-4?

Yes. Pileman® Trenchless, Pileman® SDF and Pileman® BH have been tested to API 13A and OCMA DFCP-4 specifications.

What do I add when the bore is losing returns in gravel?

Use a slurry built for gravel: Pileman® SDF is designed to drill in sand, gravel or rock. Amrfeo bentonite is naturally low in fluid loss, so very little of it penetrates the ground. If you are losing whole returns into open gravel, send us your ground report and the technical desk will suggest the mix.
