Goes in with the cement
VodaSeal™-Grout is treated bentonite with a high montmorillonite content, designed to be used with cement for all grouting applications. It is available only in powder form, and is added at 3% by weight of the cement.
Bentonite powder for grouting and waterproofing
What are you grouting?
Have a mix design or a specification? Send it with your enquiryWhat the bentonite does in a cement grout
Holds the water in the mix
Bleed, measured to ASTM C940 at that 3% addition with OPC grade 53 cement: in a neat grout at a 0.7 water–cement ratio it falls from 11.35% to 5.53%, and in a sand grout at the same ratio from 3.86% to 1.38%.
Flows where you pump it
It improves plasticity, so the grout flows easily, and it is designed to work with retarders and accelerators. In an accelerated sand grout at a 0.7 water–cement ratio, bleed to ASTM C940 is 2.16% without it and 1.11% with it at 3% by weight of cement.
Lowers the permeability
In a cement–bentonite mix it acts as a hydraulic barrier and waterproofs the grout: permeability coefficient 10−8 cm/s, measured after 7 days.
Made by us, by extrusion
Made from a 100% clay extrusion process, under precise control of chemical treatment, at our own plant at Bhuj, Kutch.
Have a mix design or a specification?
Send it with your enquiry. The technical desk reads it and replies within 1 working day.
Made by us. Checked by others.
Since 1994
A manufacturer, not a trader. Bentonite at Bhuj, polymers at Domjur.
ISO 9001:2015
All our plants are quality management system certified.
Star Export House
Recognised by the Government of India. We ship through Mundra and Kandla.
Own mine, Kutch
The clay in every bag comes from our own reserves in Kutch.
VodaSeal™-Grout, the grade and its figures
One powder grade, added at 3% by weight of the cement. The permeability is measured after 7 days for use as a cement–bentonite mix, and the fluid loss is a slurry test at 64 kg/m³, not at the 3% addition.
- 3%dose, by weight of cement
- 10−8 cm/spermeability at 7 days
- 20 mlAPI fluid loss at 64 kg/m³
- >35 ccfree swelling volume
- 85% minpassing #200 mesh
Frequently Asked Questions
What is VodaSeal™-Grout used for?

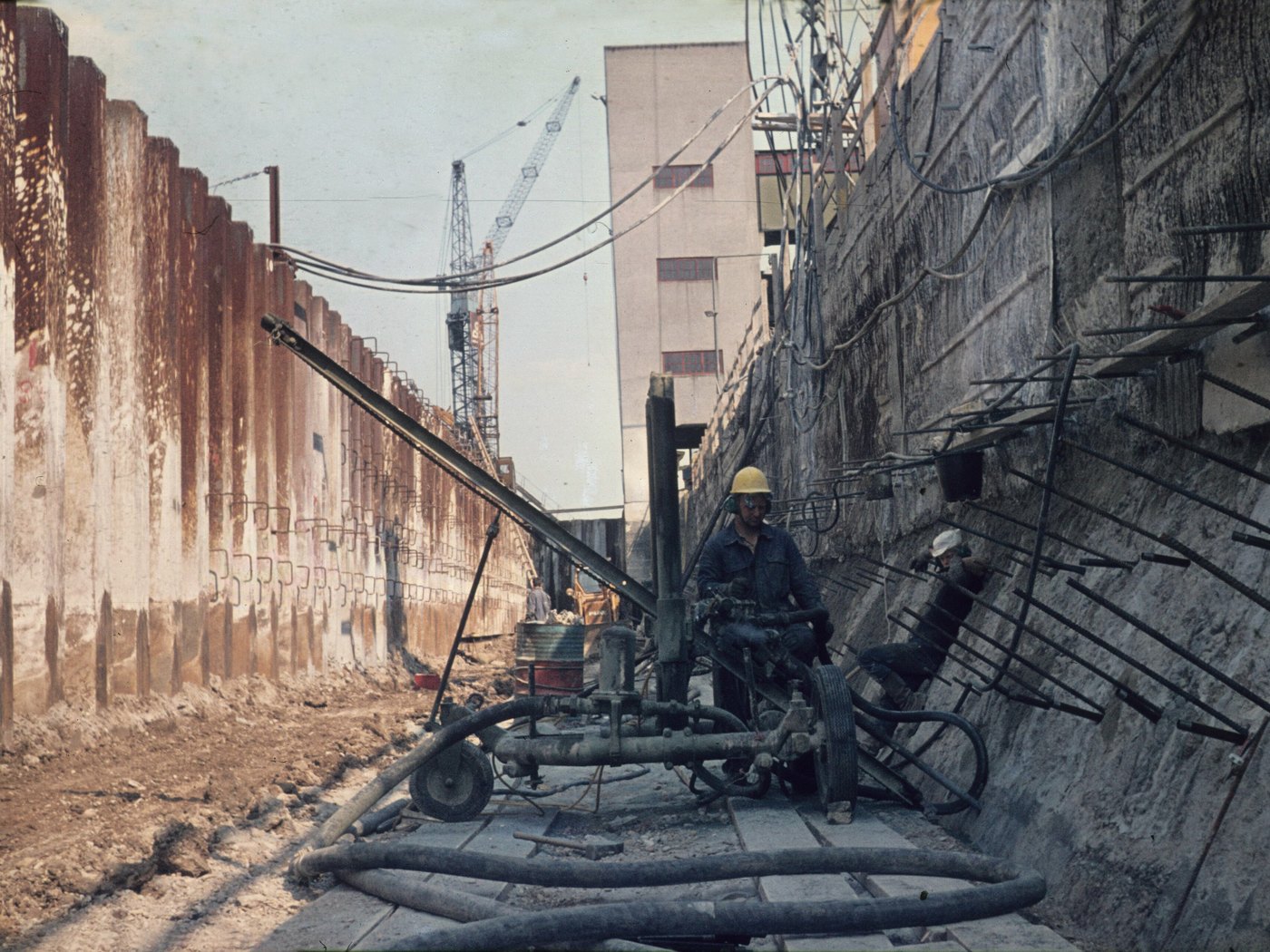

Grouting with cement: tunnel linings, dam foundations, pile structures and soil stabilisation. Added to the grout, it helps it flow, cuts bleed, lowers permeability and makes the grout watertight. It comes as a powder only.
How much goes into a cement grout?
3% of the cement's weight: 3 kg for every 100 kg of cement. One tonne of VodaSeal™-Grout treats about 33 tonnes of cement.
How much does it reduce bleed?
In a neat cement grout at a 0.7 water–cement ratio, bleed falls from 11.35% to 5.53% with 3% VodaSeal™-Grout. It lowers bleed in sand grouts too.
Does it work with retarders and accelerators?
Yes. It is designed to work with cement, retarders and accelerators, and it still lowers bleed when an accelerator is in the mix.
What permeability can I expect?
Down to 10−8 cm/s, measured on a cement–bentonite mix after 7 days. Water quality affects it, so tell us about your site water.
Who supplies bentonite for cement grouting?
Amrfeo Private Limited, a manufacturer since 1994, makes and exports VodaSeal™-Grout, its bentonite for cement grouting, supplying buyers across the Gulf, Europe and Asia. The bentonite is mined and processed at our plant at Bhuj, Kutch, Gujarat, under ISO 9001:2015.
Which bentonite is used for waterproofing grouts?
VodaSeal™-Grout, a treated bentonite with a high montmorillonite content, made to be used with cement. Added at 3% of the cement’s weight, it lowers the grout’s permeability and gives it hydraulic-barrier and waterproofing properties; it also cuts bleed and helps the grout flow. It comes as a powder only.
