What does your fluid need?
Not sure which? Send us your drilling fluid details

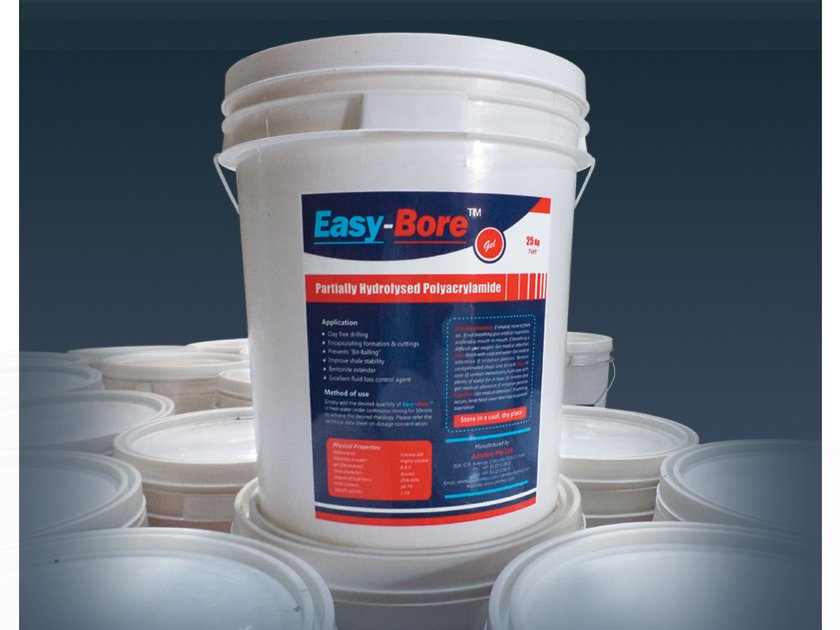

Easy-Bore™ extends a bentonite slurry: added to Pileman® at 50 kg per m³, the gel lifts the Marsh viscosity from 48″ to 100″ and beyond. It coats and encapsulates cuttings on shale and reactive clays, prevents bit balling and reduces drill torque.
Supplied as a gel, Easy-Bore™ dissolves fast in a bentonite suspension, without the fish-eyes that powder PHPA forms, and is compatible with most drilling fluid products, biopolymers, PAC or CMC. Fresh water only, treated with soda ash light.

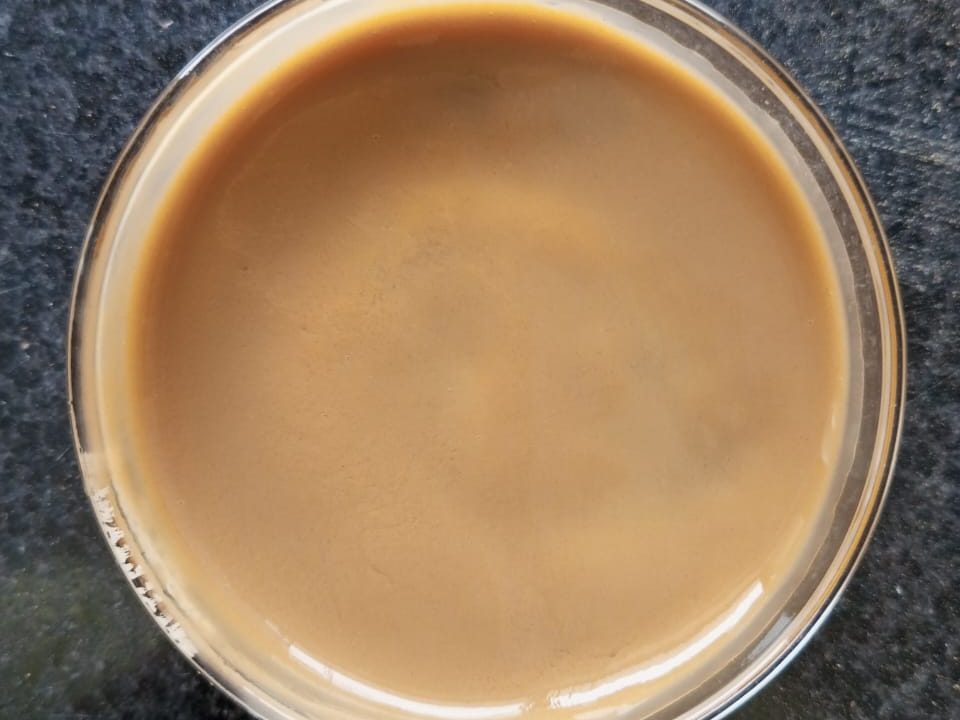

AM-PAC™ is a fluid-loss and filtration controller, and a minimal viscosifier, at 100 to 500 g per m³ of bentonite slurry. It is effective in saline water, over a wide pH range, and is not susceptible to a variety of bacterial attack.

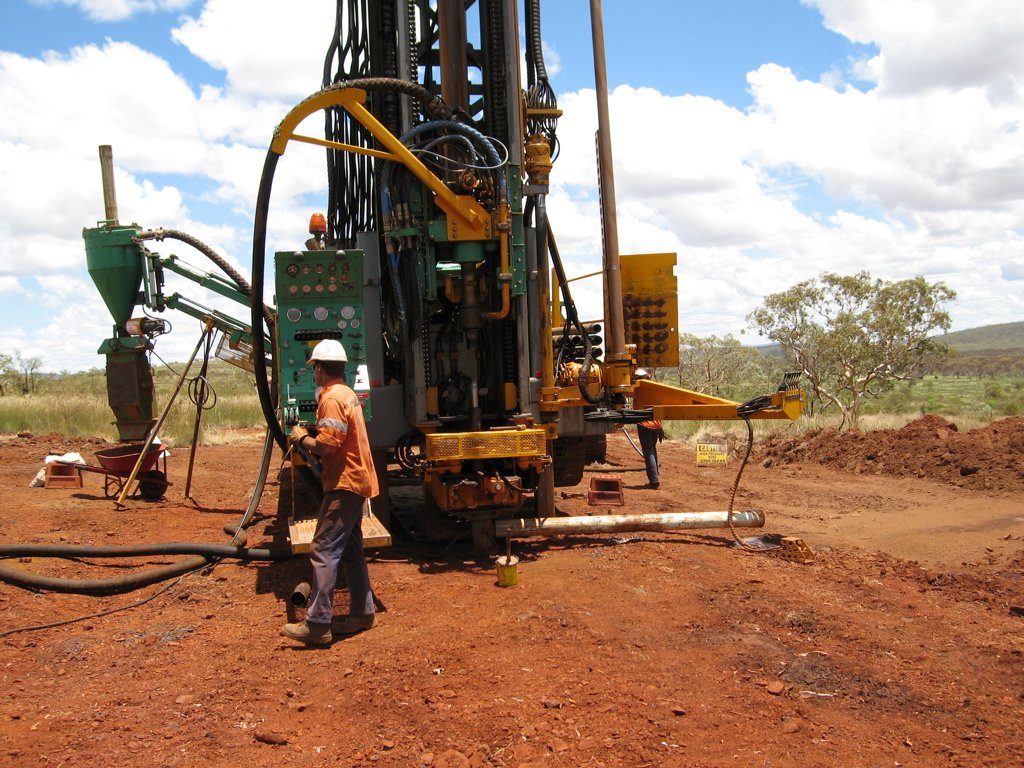

Foam-Drill™ makes a stable foam at low concentration, typically 10 kg per m³, that carries the cuttings out and cools the bit: for air, reverse circulation, rock, water-well and mining work, and in loss-circulation zones.

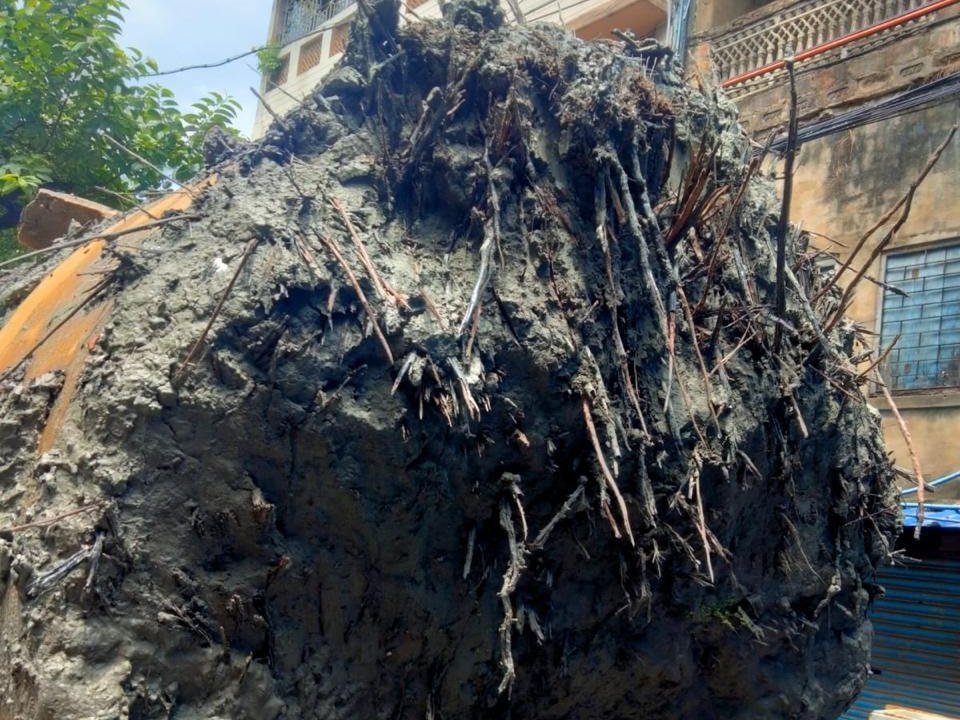

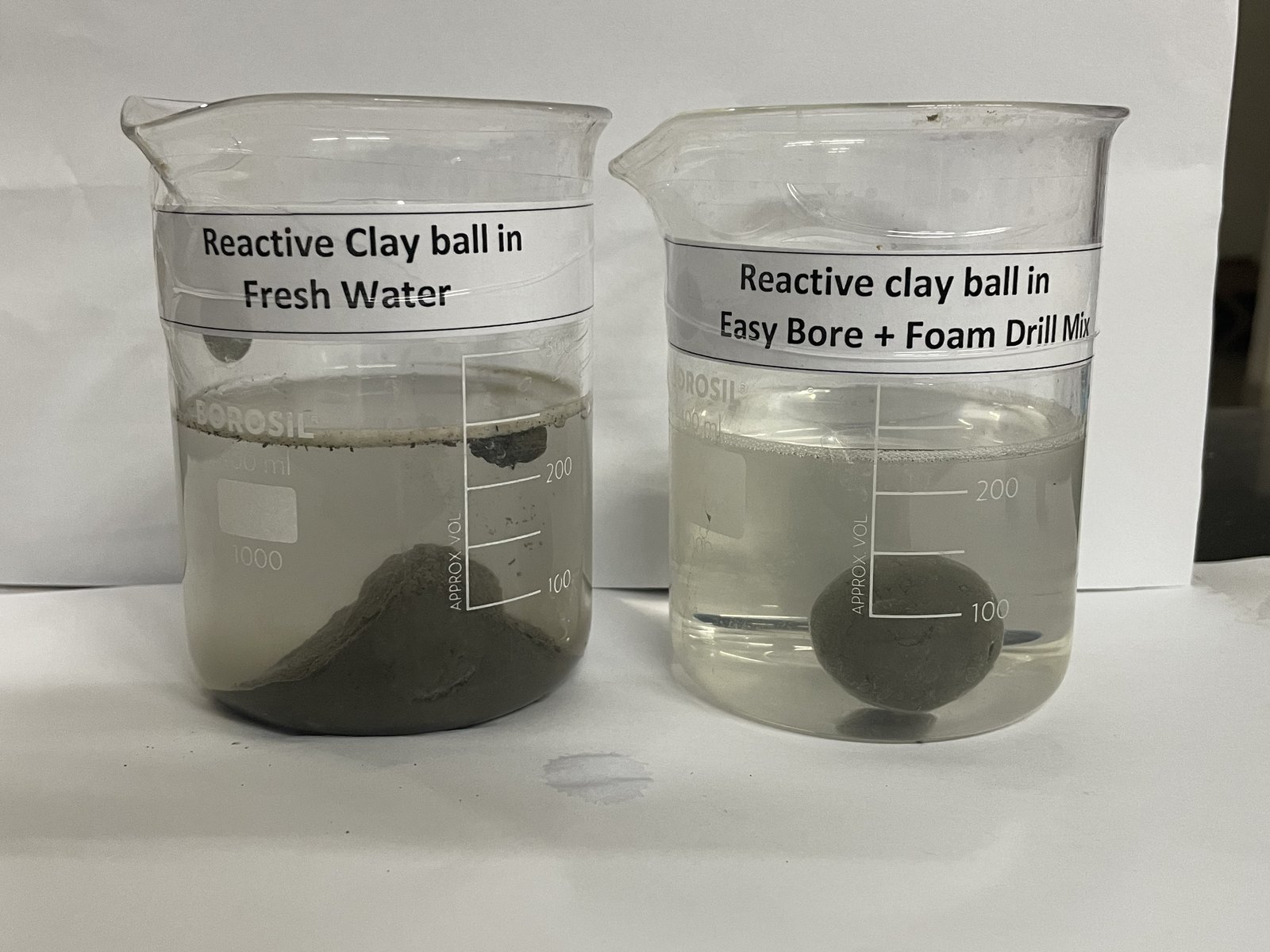

Easy-Bore™ and Foam-Drill™ work together on reactive clay: the gel coats the clay and the foam carries it out, so it doesn't ball on the cutting head in HDD or microtunnelling. In our own test, a reactive clay ball broke down in fresh water within 15 minutes and stayed whole in the Easy-Bore™ + Foam-Drill™ mix.
Send us the drilling fluid details: the bentonite in use, the ground and the water. The technical desk reads them and replies within 1 working day.
Since 1994
A manufacturer, not a trader. Bentonite at Bhuj, polymers at Domjur.
ISO 9001:2015
All our plants are quality management system certified.
One Star Export House
Recognised by the Government of India. We ship through Mundra and Kandla.

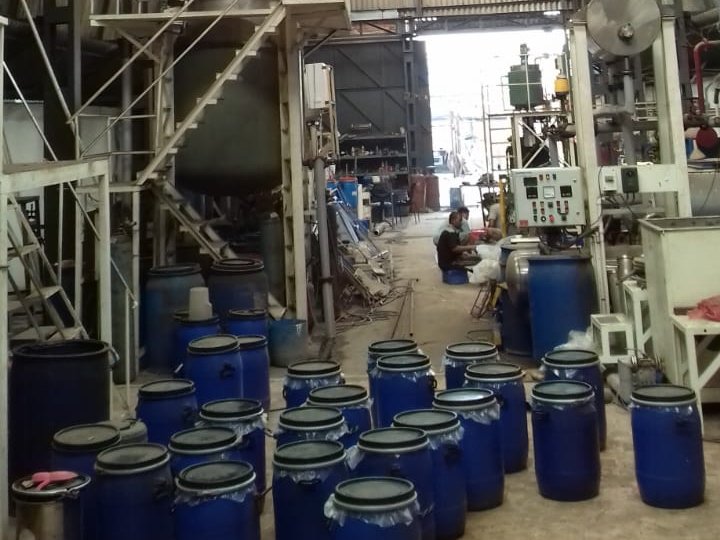

Own plant, Domjur
The polymers, cellulose and foam in every pail and drum are made at our own plant at Domjur, Howrah.
Viscosity takes Easy-Bore™. Fluid-loss control takes AM-PAC™. Air and foam drilling takes Foam-Drill™.
Viscosifier gel, for fresh water only
Fluid-loss control, fresh or saltwater
Drilling foam, fresh to seawater
| Easy-Bore™ | AM-PAC™ | Foam-Drill™ | |
|---|---|---|---|
| Use | Viscosifier gel, for fresh water only | Fluid-loss control, fresh or saltwater | Drilling foam, fresh to seawater |
| Marsh viscosity | 48″ to 100″Marsh viscosity, gel added to Pileman® at 50 kg/m³ | no figure on its data sheet | no figure on its data sheet |
| Fann 600 rpm, gel alone at 25 kg/m³ | 40 | no figure on its data sheet | no figure on its data sheet |
| Degree of hydrolysis | 60–70% | no figure on its data sheet | no figure on its data sheet |
| pH | 8–9pH, 3% solution | 7–10pH, 1% solution at 25 °C | 6.5–7.5pH, 1% solution |
| Specific gravity | 1.03–1.05 | no figure on its data sheet | 1.001–1.005 |
| Dose | no figure on its data sheet | 100–500 g/m³dose, per m³ of bentonite slurry | 10 kg/m³typical dose, fresh water |
| Viscosity, 2% solution at 25 °C | no figure on its data sheet | 7,000 cps min | no figure on its data sheet |
| Degree of substitution | no figure on its data sheet | 0.8 min | no figure on its data sheet |
| Active matter, dry basis | no figure on its data sheet | 95% min | no figure on its data sheet |
| Seawater pre-treated with soda ash, in its ASTM D1173 foam test | no figure on its data sheet | no figure on its data sheet | 30,000 ppm |
Easy-Bore™ to thicken a bentonite slurry and protect against shale and reactive clay, in fresh water. AM-PAC™ to control fluid loss, in fresh or salt water. Foam-Drill™ to make drilling foam for air, rock, water-well and mining work, in fresh, brackish or seawater. Not sure? Send us your drilling fluid details and the technical desk replies within 1 working day.
It thickens it, while the fluid loss stays the same. How much to add depends on your bentonite, ground and water: send us your mud programme.
No. Use it in fresh water only, treated with soda ash light; it is not designed for chloride or hard water of any kind. AM-PAC™ is effective in saline water, and Foam-Drill™ works with all types of make-up water, including hard, brackish and seawater.
100 to 500 g per m³ of bentonite slurry, depending on drilling conditions. It controls fluid loss, adds a little viscosity, works across a wide pH range and helps hold back reactive clay and shale.
About 10 kg per m³ in fresh water; with heavy water influx, raise the concentration and lower the injection rate. It is used for air drilling, reverse circulation, rock drilling, water wells, mining and EPB tunnel face support, and, with AM-PAC™ or Easy-Bore™ gel, as a stiff foam for sticky clay and shale.
Easy-Bore™ gel ships in 25 kg pails, AM-PAC™ in 25 kg bags, and Foam-Drill™ in 210-litre barrels.
Amrfeo, since 1994. All three are made by us at our polymer plant at Domjur, Howrah, West Bengal, under an ISO 9001:2015 quality system; our bentonite, Pileman® included, is mined and processed at Bhuj, Kutch. We are a Star Export House recognised by the Government of India, and export through Mundra and Kandla.
