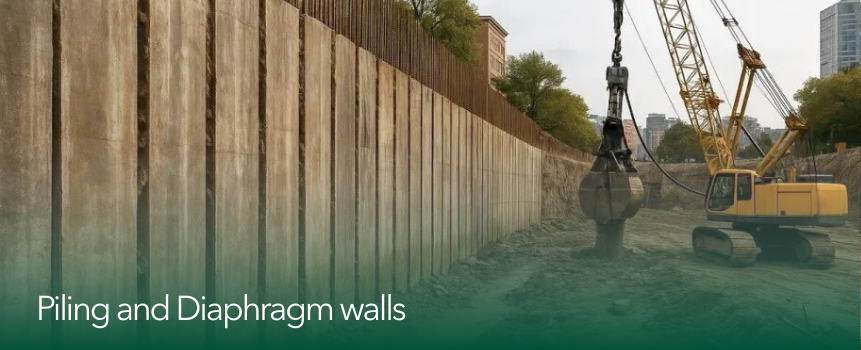

Bentonite Slurry for Piling and Diaphragm Walls
Piling and diaphragm wall construction are critical foundation techniques in civil engineering — providing deep structural support for bridges, high-rises, ports, and underground basements. These processes require precise excavation stability and reliable slurry performance to maintain borehole integrity during concreting.
Why Contractors Choose Pileman® for Piling
One tonne of Pileman® yields up to 110 barrels of usable drilling fluid — enough to support boreholes that competing sodium bentonites need 30–40% more product to stabilise. For contractors specifying bentonite for piling, diaphragm walls, and slurry trench construction, that yield differential is the line item that decides project margin.

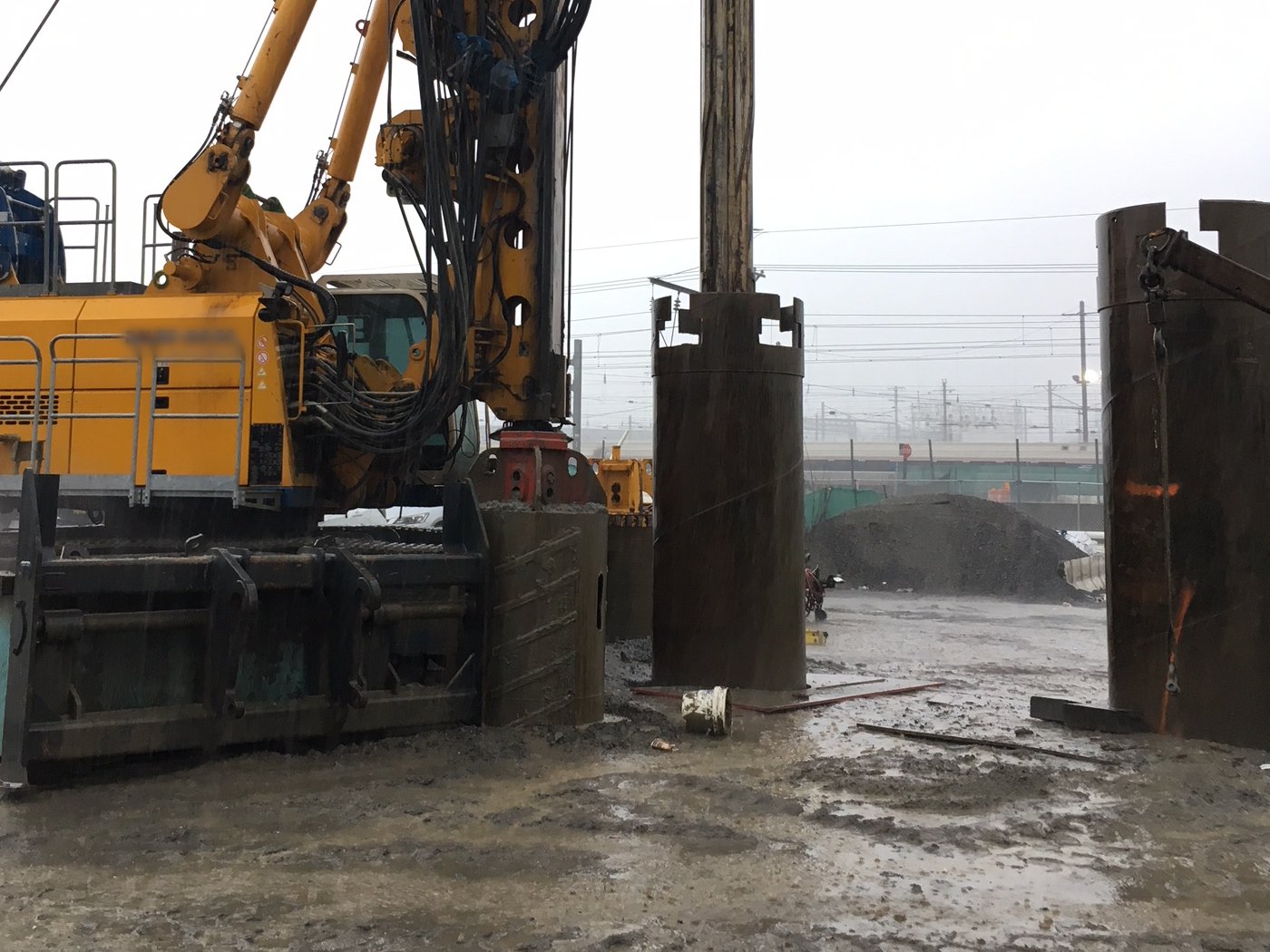

Bentonite slurry for bored piles has one job: hold the borehole open until concrete replaces it, without compromising the finished pile’s capacity. Pileman® is formulated to do that at every stage of the piling sequence:
1
High Yield, Lower Consumption
Up to 110 bbl/sht from premium sodium montmorillonite, cutting material cost per linear metre of pile bored.
2
Rapid Hydration

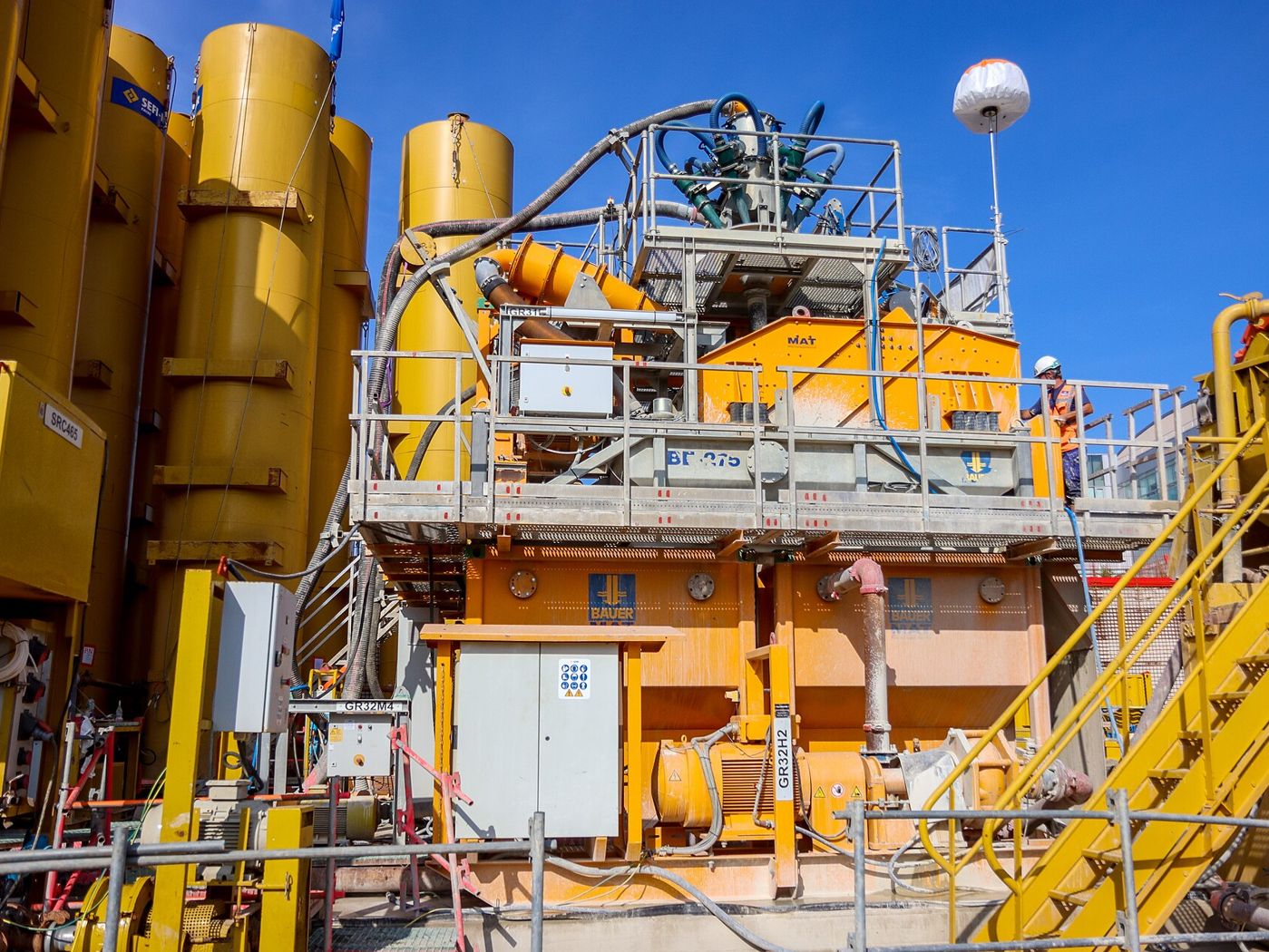

Builds viscosity fast in mixing plants, shortening the time between batching and borehole readiness on tight schedules.
3
Controlled Fluid Loss
API fluid loss typically 20–22 mL/30 min at correct dosage, forming a thin filter cake that seals the wall without ballooning the effective pile diameter.
4
Stable Gel Strength
Sustains cuttings and sand in suspension between circulation cycles, reducing sediment at the pile base ahead of concreting.
5
Tremie-Compatible
Retains workability under the calcium loading of fresh concrete, resisting the premature flocculation that causes slurry inclusions in the finished shaft.
6
Consistent Batch-to-Batch Performance
Activation-controlled processing keeps viscosity, yield point and fluid loss within tight tolerance across shipments.
Pileman® Technical Profile
Yield
110 bbl/sht
Free Swelling Volume
28–33 ml
Marsh Viscosity (at 50 kg/m³)
>40 sec
API Filtrate Loss (30 min)
20–22 ml
pH (3% dispersion)
8.5–9.5
Pileman® BH — For Brackish and Saline Ground Conditions
Coastal sites, estuarine ground and saline aquifers break standard bentonite — high chloride, sulphate and carbonate hardness collapse the ionic layer that keeps clay particles dispersed, causing flocculation and a filter cake that can’t hold fluid loss or hydrostatic pressure, no matter the dosage. Pileman® BH is formulated specifically for that ground.
1
One Product, Multiple Formations
Maintains consistent slurry performance across varied soil and water conditions, reducing the need to switch products mid-project.
2
Trenchless and Vertical Drilling
One adaptable fluid system across HDD, piling, diaphragm walling and tunnelling.
3
Excellent Borehole Support
Controlled rheology, suspension and filtration properties hold stability and minimise formation collapse.
4
Economical to Use
High-yield performance and adaptable slurry properties reduce consumption and cut the overall cost of drilling fluid per bore.
Where Pileman® BH Is Used
Coastal and estuarine piling and diaphragm wall projects, HDD crossings in brackish or tidal ground, tunnelling and microtunnelling through saline aquifers, and any site where mix water carries significant chloride, sulphate or carbonate hardness. If your site water is above 5,000 ppm chloride or is carbonate-hard, specify BH from the start rather than trying to correct a standard grade batch by batch with soda ash.
Pileman® BH Technical Profile
Marsh Viscosity
50 sec
API Filtrate Loss (30 min)
23 ml
pH (3% dispersion)
10–11
Sourced and Processed for Export-Grade Consistency
Pileman® is processed from Amrfeo’s own Kutch, Gujarat bentonite reserves under ISO 9001:2015 quality systems, with Star Export House-backed logistics from Mundra and Kandla ports. For piling contractors and drilling fluid distributors sourcing bentonite internationally, that means traceable raw material quality and shipment consistency batch after batch — not a commodity spot-buy.
Frequently Asked Questions
Pileman® is a polymer-free, high-yield sodium bentonite support-fluid additive built for standard fresh water and low-salinity ground conditions. It’s the base product for bored piling, diaphragm walling, secant and contiguous pile walls, and general vertical drilling, with a 15+ year proven field record holding borehole walls stable with minimal collapse.
Pileman® BH is formulated for drilling and piling in seawater, brine, or ground with extreme chloride, sulphate or carbonate hardness — coastal and estuarine piling, HDD river crossings in tidal ground, and tunnelling through saline aquifers, vertical or horizontal.
Pileman® is formulated for fresh water and standard geotechnical ground conditions. Pileman® BH starts from the same enhanced bentonite clay base but is engineered with select polymers and additives calibrated to your site’s specific salinity and ionic hardness.
High concentrations of chloride, sulphate, calcium or carbonate ions collapse the ionic layer that keeps clay particles dispersed, causing flocculation and sedimentation. The result is a permeable, compromised filter cake that can’t hold fluid loss or hydrostatic pressure, regardless of dosage — adding more standard bentonite doesn’t fix a chemistry problem.
Test or estimate your site water’s salinity/TDS and chloride, sulphate and carbonate concentration. Low-salinity fresh water and standard geotechnical ground call for Pileman®. Seawater exposure, brine, or high carbonate/chloride hardness call for Pileman® BH. If you’re unsure, send us the water analysis and we’ll tell you.
It’s formulated to your site’s water salinity, hardness and ground conditions, so send us your data before ordering. Standard Pileman® ships as a fixed grade and is the more economical choice where fresh water conditions don’t require BH’s ionic resistance.
Tell us the pile diameter, depth and soil type. Replies usually within one working day.
